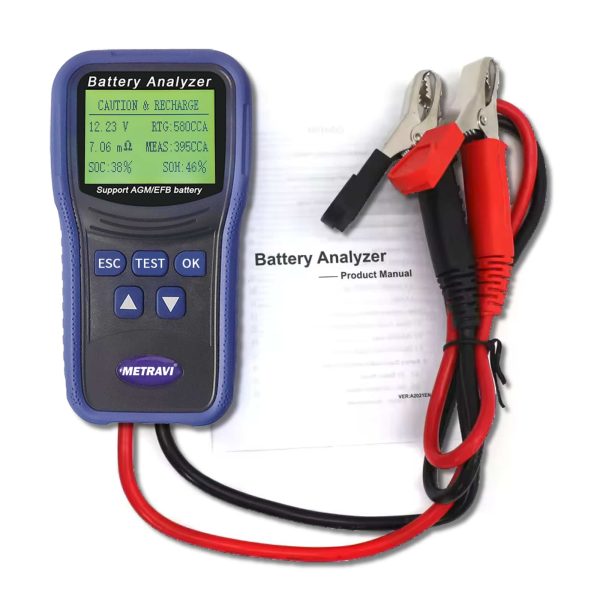

Battery Impedance Tester BT-200
₹2,450.00
BT-200 Battery Analyser for testing Battery Voltage, Battery
Capacity, Cold Start Current, Internal Resistance, State of
Health & State of Charge. With backlit LCD display.
Supports AGM/EFB battery start stop test and variety of
battery standards (CCA, IEC, SAE, EN, DIN,JIS, unknown)
3 in stock
Battery Voltage: 12V / 24V
Display: 16 bit Colour LCD
AGM/EFB Battery Start/Stop Test: Available
Real Time Voltage Waveform Test: Available
Measuring Range: 100CCA – 2000CCA
Operating Battery Capacity: 3Ah – 220Ah
Accuracy: ±5%
Measurement Mode: 4 Wire Kelvin Test Principle
Operating Voltage: 9V – 35V
Line Protection: Clamping the incorrect battery terminal will not burn the meter
Battery-Test: Voltage. Internal Resistance. Cold Start Current. SOC. HOC
Start-Load: Vehicle Starting Load Voltage Test
Charge-Sys: Vehicle to Battery Charging Voltage Test
| Brand | Metravi |
|---|---|
| Warranty | One year against manufacturing defects |
| Model | BT-200 |
| Colour | Blue-Black |
| Display | Lattice Screen Backlit LCD |
| Real Time Voltage Waveform Test | – |
| Measuring Range | 100CCA – 2000CCA |
| Accuracy | ≤±5% |
| Measurement Mode | 4 Wire Kelvin Test Principle |
| Operating Voltage | 9V – 35V |
| Line Protection | Clamping the incorrect battery terminal will not burn the meter |
| Start-Load | Vehicle Starting Load Voltage Test |
| Run-Load | Battery Maximum Load Voltage Test |
| Charge-Sys | Vehicle to Battery Charging Voltage Test |
| Power | Powered by the battery under test |
| Printer Paper | – |
| Print Report | – |
| Operating Battery Capacity | 3Ah – 220Ah |
| Battery Voltage | 12V / 24V |
| Battery Test | Voltage. Internal Resistance. Cold Start Current. SOC. HOC |
| Operating Temperature | -20° to 60°C (-4° to 140°F) |
