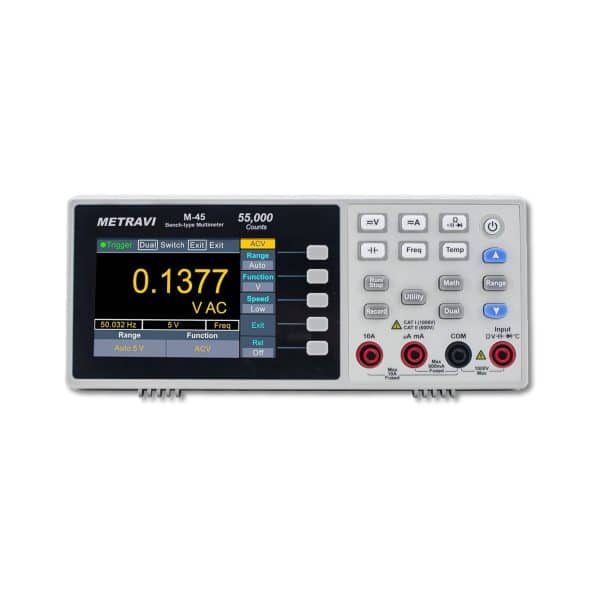

Bench Type Multimeter M-45
₹14,500.00
M-45 New 5 digits, 55000 Counts, bench-type, compact, T-RMS Multimeter with large TFT Colour Display, USB & RS232 Interfaces for Data Logging & Analysis. Supports Dual line display & SCPI. Measure Voltage, Current, Resistance, Capacitance, Frequency, RTD/K-type Temperature.
3 in stock
Display: 55000 Counts, 3.5-inch TFT LCD with resolution 480*320, Dual line display supported
Interface: USB or RS232 PC Interface support for Data Analysis
Sampling Rate: Up to 60 readings per second
DC Current: 500µA/5000/50mA/500/5A/10A
Accuracy: ±0.15% + 10
AC Current (T-RMS): 500µA/500mA/5A/10A
Accuracy: ±0.5% + 20
DC Voltage: 50.000mV/500.00/5.0000V/50.000/500.00/1000.oV
Accuracy: ±0.025% + 5
AC Voltage (T-RMS): 500mV/750V
Accuracy: ±0.5%+30
Resistance: 500Ω/5kΩ/50/500/5MΩ/50MΩ
Accuracy: ±0.1%+5
Capacitance: 50nF/500µF/5mF/50mF
Accuracy: ±2.5%+5
Frequency: 10.000Hz/60MHz
| Brand | Metravi |
|---|---|
| Colour | Cream |
| Warranty | One year against manufacturing defects |
| Model | M-45 |
