Description

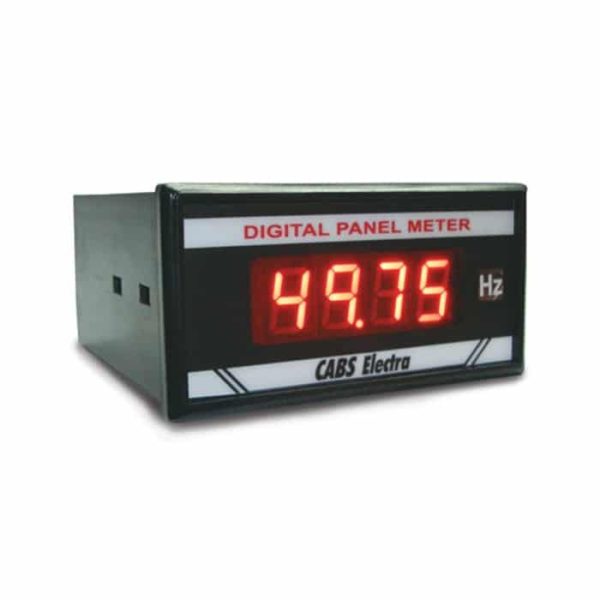

Microprocessor based 4 digit display.
Available for ranges: 99.99Hz, 999.9 Hz, 10KHz and 100KHz ranges.
Available in 96 * 96 and 96*48 mm Bezel sizes.
Auxiliary Power Supply: 230V AC 50Hz / 110V AC 50Hz / DC Auxiliary inputs also available
| Model | CE-500F 999.9Hz |
|---|---|
| Brand | Metravi |
| Warranty | Two years against manufacturing defects |
| Display | 4 digit LED |
| Accuracy | ± 0.02 of the reading |
| Range (Any One) | 1- 9.999 KHz (Res.: 0.001KHz), 10-99.99 Hz (Res.:0.01hz), 10-9999 Hz (Res.: 1Hz) |
| Size (Any One) | 72 mm x 72 mm, 96 mm x 48 mm, 96 mm x 96 mm |
| Max. depth | 105 mm |
| Mounting Type | Flush |
| Input Voltage | 20-500 Volts |
| Power Consumption | AC 5VA |
| Operating Temperature Range | 0°C to 50°C |
| Storage Temperature Range | 10 ~ 70ºC. |
| Max relative humidity | 95% |
| Dielectric Strength | AC 2KV/1Min, AC 3 KV/MIN |
