Description

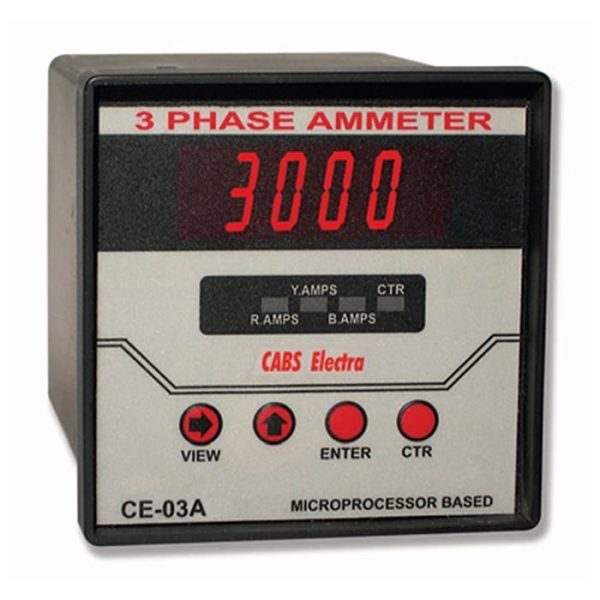

Designed using microprocessor based multiplexing technique
Can sense any changes in the line currents
These are CT Operated meters and are factory set either 1A or 5A CT Secondary
Displays phase currents for a three phase system
Size 96 x 96 mm sq,
3-1/2 Digits Red LED Display
With built-in selector switch
Measures Ir, Iy, Ib
| Model | CE-03A |
|---|---|
| Brand | Metravi |
| Warranty | One year against manufacturing defects |
| Accuracy | 1% of full load |
| Control Power | 230 Volt AC ± 10%, 50/60 Hz, 3VA |
| Current Input | 7A Max continuous at any current terminal |
| CT Secondary | 5 Amp or 1Amp (on order) |
| Dielectric Strength | 2 KV for 1 minute |
| CT Ratio | As per order |
| Operating Temperature | 0ºC to 70ºC |
| Storage Temperature Range | -20ºC to 85ºC |
| Relative Humidity | 95 % |
