Features :

Compact plastic case, suitable for use under poor working condition. Test at any angle, even upside down
Wide measuring range. It can measure the hardness of all metallic materials.
Direct display of hardness scales HRA, HRB, HRC, HV, HB, HS, HL
Large screen (segment LCD), showing all functions and parameters. with EL background light
Large capacity memory could store 100 groups information
Datapro Software to connect with PC via Rs232 port.
Software calibration function

Standard Configuration:

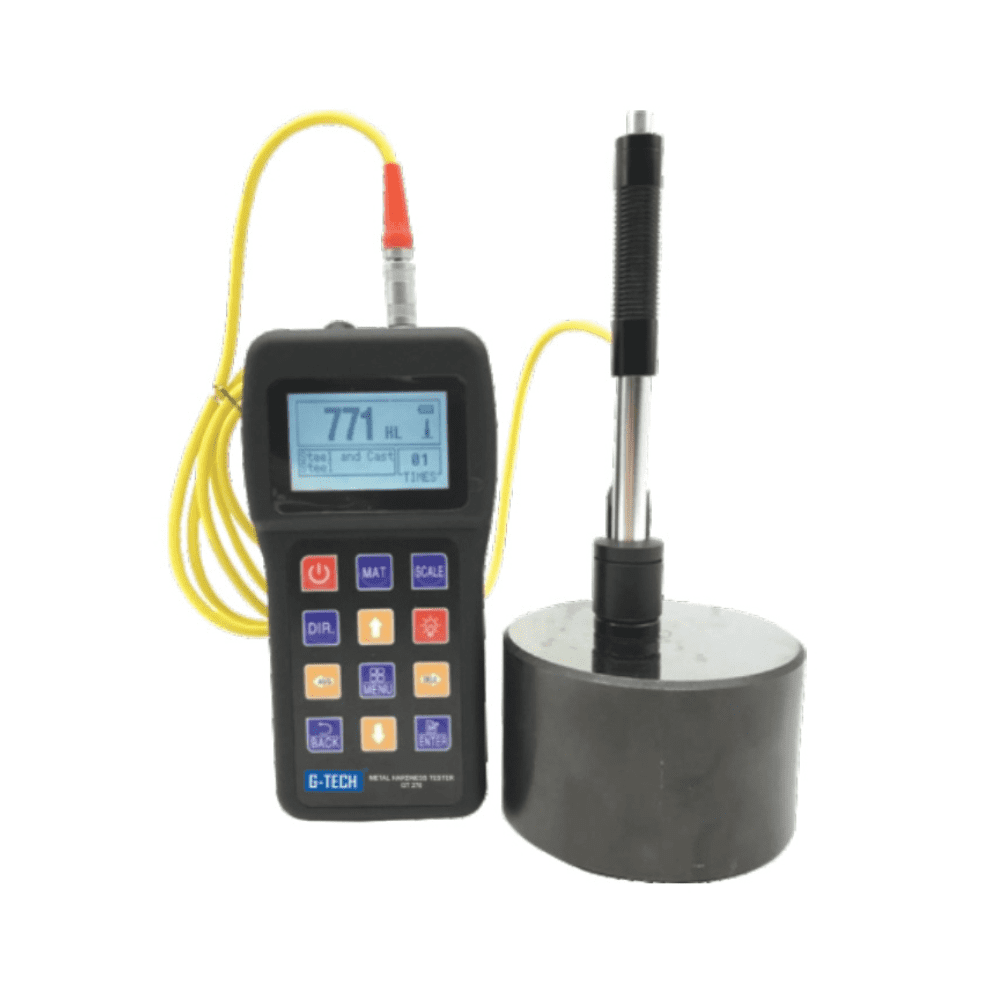

Main unit: 1

D type impact device (With cable): 1

Standard test block: 1

Cleaning brush (I): 1

Small support ring: 1

Software: 1

Manual: 1

Instrument packing case: 1

Technical Specification :

Measuring range: (170-960)HLD, (17-68.5) HRC, (19-651) HB (80-976) HV, (30-100) HS, 59-85 HRA, (13-100) HRB
Measuring direction: 360°
Accuracy: ±6HLD
Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS
Display: Segment LCD
Data memory: Max. 100 groups (relative to impact times 32~1)
Working voltage: 3V ( 2 AA size alkaline battery)
Continuous Working period: About 100 hours (with backlight off)
Communication interface: RS232
