Description
Bandwidth: 100MHz
Channels: 2+1 (external)
Modes: Normal, Peak detect, Averaging
Sample Rate: 1GS/s half channel*, 500MS/s each channel
Input Coupling: DC, AC , Ground
Input Impedance: 1MΩ±2%, in parallel with 15pF±5pF
Probe Attenuation Factor: 1X, 10X, 100X, 1000X
Channel Isolation: 50Hz: 100:1 / 10MHz:40 :1
Cursor: △V and △T between cursors

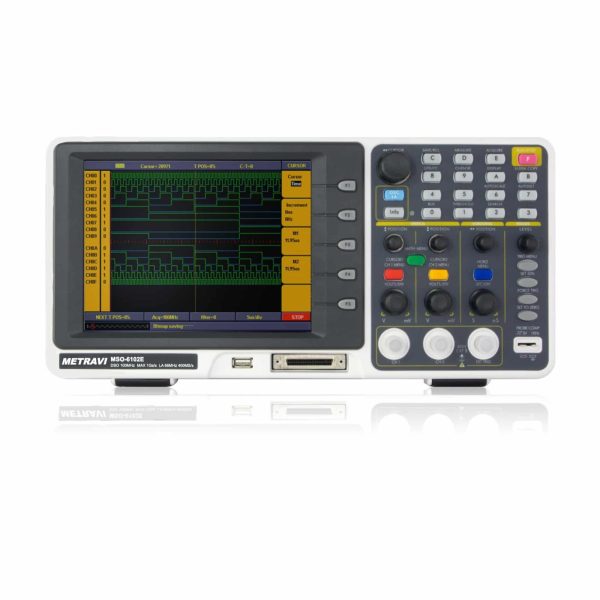

| Model | MSO-6102E |
|---|---|
| Colour | Black-White |
| Warranty | One year against manufacturing defects |
| Brand | Metravi |
| Bandwidth | 100MHz |
| No of Channel | 2 + 1 (external trigger) |
| Sampling Rate | 1GS/s half channel, 500MS/s each channel |
| Input Coupling System | AC, DC, GND |
| Input Impedance | 1MΩ±2%, in parallel with 15pF±5pF |
| Probe Attenuation Factor | 1000X, 100X, 10X, 1X |
| Display | 640×480 px, 8″ Coloured LCD, full colour TFT |
| Power | 100～240 VAC RMS, 50/60Hz, CAT II, Mains Voltage |
| Fuse | 250V, 2A, T grade |
| Storage Environment | -20° to 60°C, less than 90%RH |
| Operating Environment | 0° to 40°C, less than 90%RH |
| Sample Rate | 20 S/s ～ 1GS/s |
| Max. Storage | 16K(when only sampling rate is 250MS/s, 500 MS/s, 1GS/s), 4M/Channe |
| Measurement Bandwidth | 100MHz |
| Trigger Position Setting | mid-trigger, Pre-trigger, re-trigger |
| Trigger Mode | Bus trigger, Data width queue trigger, Distributed queue trigger, Edge trigger, Pattern trigger, Sequential queue data |
| Data System | Binary system, Decimal system, Hex |
| Digital Filter | 0/1/2 optional |
| Logic Analyser Input Signal Range | 30V～30V |
