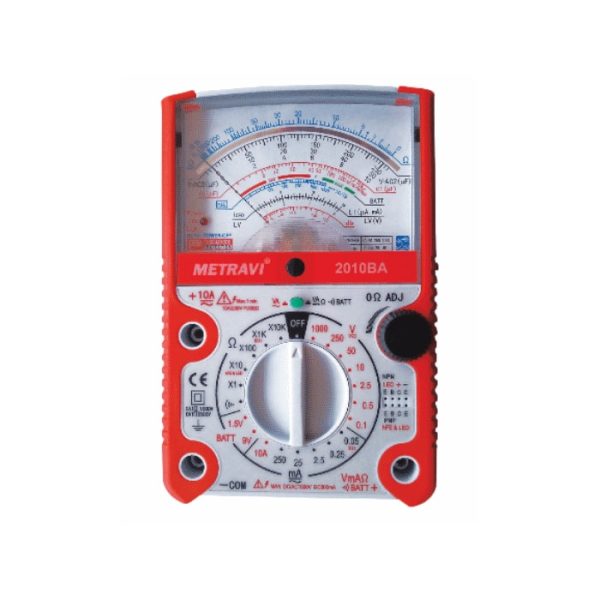

Name: Analogue Multimeter 2010BA
Brand: Metravi
SKU: 32578
Availability: InStock

Confirms to IEC61010-1, CAT II 1,000V, CAT III 500V to ground potential
DC Voltage: 0-0.1/0.5/2.5/10/50/250/1000V
Accuracy: ±3%
AC Voltage: 0-0.1/0.5/2.5/10/50/250/1000V
Accuracy: ±4%
DC Current: 0-0.05/0.25/2.5/25/250mA/10A
Accuracy: ±3%
AC Current: 0-0.05/0.25/2.5/25/250mA/10A
Accuracy: ±4%
Resistance: 0 – 2k / 20k / 200k / 2M / 20M.Ohms
Accuracy: ±3%
Battery Test: 1.5V / 9V
Transistor Test, Diode Test and Continuity Test Facility

Model	2010BA
Brand	Metravi
Warranty	One year against manufacturing defects
Colour	Red-Grey
Display	Analogue
Diode & Continuity	Diode & Continuity test
Transistor Test	Transistor Test
DC Voltage Range	0-0.1V/0.5V/2.5V/10V/50V/250V/1000V
DC Voltage Accuracy	±3%
AC Voltage Range	0-0.1V/0.5V/2.5V/10V/50V/250V/1000V
DC Current Range	0-0.05mA/0.25mA/2.5mA/25mA/250mA/10A
DC Current Accuracy	±3.0%
AC Current Range	0-0.05mA/0.25mA/2.5mA/25mA/250mA/10A
Resistance Range	0–200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Resistance Accuracy	±3%
Power Source	Battery Operated
Battery Type	Alkaline
Battery Size	9V, AA
No of Batteries	3
Certifications	CAT III 500V, CAT-II 1000V, EN-61010-1

Analogue Multimeter 2010BA
